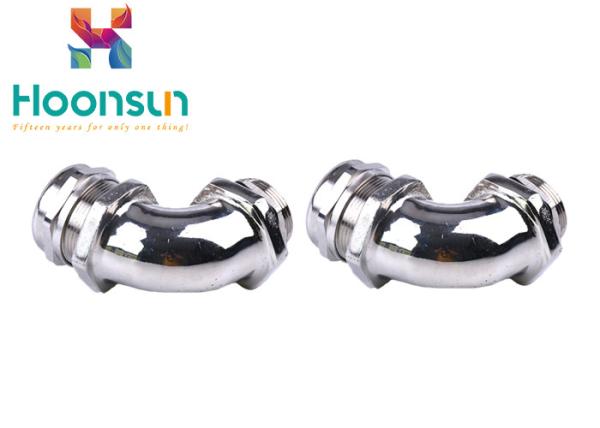

Driflex 90 Degree Nickel Plated Brass Flexible Hose Connector
- Spiral tooth specification
M/PG/G
Made of high quality stainless steel/brass nickel plating
Metallic color (silver white)
-40 C to 100 C, instantly resistant to heat up to 120 C.
After joining, the cabinet is 90 degrees, with beautiful appearance, compact structure and high strength. In addition to the standard specifications, you can vary according to the requirements of arbitrary size and thread standards. The 3 and 90 degree connectors are connected with metal hoses with one end of the metal ring, and the other end threads are connected with threading boxes, switchgear boxes, distribution boxes, and other equipment.
good technical performance.
It has the functions of vibration resistance, impact resistance, corrosion resistance, dustproof, waterproof and radiation protection, so as to ensure the equipment works stably and reliably.
It has good usability and protective facilities, and is convenient for operation, installation and maintenance.
It is convenient for production, assembly, debugging and packing and transportation.
| 90° |
45° |
Size |
Conduit
Size |
ΦB
MM |
GL
MM |
D
MM |
Spanner
Size |
| 6.5 |
6 |
M12/M14/M16 |
AD10 |
19 |
8 |
33 |
17 |
| 10.0 |
8.5 |
M14/M16/M18 |
AD14 |
24 |
9 |
43 |
21 |
| 12.5 |
11.5 |
M18/M20/M22 |
AD17/AD19 |
28 |
10 |
55 |
25 |
| 16.5 |
15.5 |
M20/M22/25/M27 |
AD21 |
32.5 |
10 |
56 |
29 |
| 21.5 |
20.5 |
M25/M27/M30/M32 |
AD27 |
39 |
14 |
73 |
34 |
| 29.5 |
27.5 |
M32/M36/M40/M42 |
AD36 |
48 |
14 |
90 |
43 |
| 38.0 |
36.5 |
M40/M42/M48/M50 |
AD45 |
58 |
14 |
105 |
55 |
| 6.5 |
6 |
G1/4"/G3/8" |
AD10 |
19 |
8 |
33 |
17 |
| 10.0 |
8.5 |
G3/8" |
AD14 |
24 |
9 |
43 |
21 |
| 12.5 |
11.5 |
G3/8"/G1/2" |
AD17/AD19 |
28 |
10 |
55 |
25 |
| 16.5 |
15.5 |
G1/2"/G3/4" |
AD21 |
32.5 |
10 |
56 |
29 |
| 21.5 |
20.5 |
G3/4" |
AD27 |
39 |
14 |
73 |
34 |
| 29.5 |
27.5 |
G1"/G1-1/4" |
AD36 |
48 |
14 |
90 |
43 |
| 38.0 |
36.5 |
G1-1/4"/G1-1/2" |
AD45 |
58 |
14 |
105 |
55 |
| 6.5 |
6 |
PG7/PG9 |
AD10 |
19 |
8 |
33 |
17 |
| 10.0 |
8.5 |
PG9/PG11 |
AD14 |
24 |
9 |
43 |
21 |
| 12.5 |
11.5 |
PG11/PG13.5 |
AD17/AD19 |
28 |
10 |
55 |
25 |
| 16.5 |
15.5 |
PG13.5/PG16 |
AD21 |
32.5 |
10 |
56 |
29 |
| 21.5 |
20.5 |
PG16/PG21 |
AD27 |
39 |
14 |
73 |
34 |
| 29.5 |
27.5 |
PG21/PG29 |
AD36 |
48 |
14 |
90 |
43 |
| 38.0 |
36.5 |
PG29/PG36 |
AD45 |
58 |
14 |
105 |
55 |
FAQ
- Q: Are you trading company or manufacturer? A: We are the factory. Also we can export the goods by ourselves.
- Q: How long is your delivery time? A: Generally we can send out the the goods within 3-7 days if the goods are in stock. Or it is should be 7-30 days if the goods are not in stock, it is according to your order quantity.
- Q: Do you provide samples? Is it free or extra? A: Yes, we could offer the samples for free charge but do not pay the cost of freight.
- Q: What is your terms of payment? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
- Q: How about the after-sale service? A: Any feedback or comments are welcomed. We will try to make the best assistant to let you maximum satisfaction.
